SR102/103/104 Series- Highest accuracy (1 ppm/yr) and stability (±0.5 ppm/yr typical) of any resistance standard
- Lowest temperature coefficients (< 0.1 ppm/ºC)
- Available in 3 models: 100Ω, 1000 Ω, 10,000Ω.
- Has remained the foremost resistance standard, with no equivalent, for over 35 years
- 5 Year Warranty Included
PRS-370 Self-Adjusting Programmable Resistance Box & RTD Simulator- Resistance range: 0.1 Ω to 20 MΩ with a Resolution of 1 μΩ or 6 digits
- Precision lab grade Resistor Standard with accuracy
- Manual or Programmable decade resistor with IEEE interface and Labview drivers
- No long term maintenance or calibration cost -with an 5 year warranty
- Designed for customers who own an 8.5 digit DMM (Fluke 8508A, 8588A1 or Keysight 3458A)
- The most revolutionary decade resistor ever!
VRS-100 Series High Resistance Standards- Set of nine, ten or eleven resistors - 1 kΩ, 10 kΩ, 100 kΩ,1 MΩ, 10 MΩ, 100 MΩ, 1 GΩ, 10 GΩ, 100 GΩ, 1 TΩ and 10 TΩ , open circuit (Depending on model)
- High Accuracy - up to 20 ppm
- Standard voltage: up to 5 kV (voltages of 10 kV are available)
- Excellent for calibration of Meggers

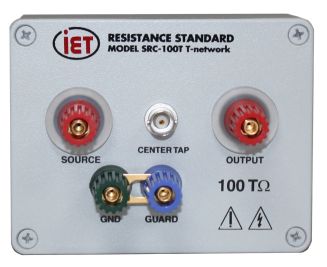

- For higher resistance values above 10 TΩ see SRC-T Network Standards
esi SR1010 Resistance Transfer Standard- Resistance Transfer Standards available in the following values 1 Ω, 10 Ω, 100 Ω, 1 kΩ, 10 kΩ, 100 kΩ
- Initial Accuracy... ± 20PPM of nominal value matched within 10PPM
- Transfer Accuracy... ± (1PPM + 0.1uΩ at parallel value) for 100:1
- Transfer Accuracy... ± (1PPM + 1uΩ at series parallel value) for 10:1
- Long Term Accuracy... ± 50PPM of nominal value
- Calibration Accuracy... ± 10PPM

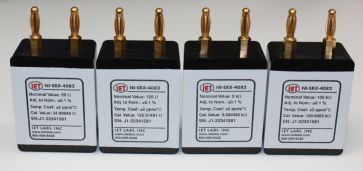

SRX-NI-4082 Standard Resistor Calibration Set- Owned used and recommend by National Instruments
- Very stable - drift < 50 ppm/yr
- Excellent temperature coefficient - 2 ppm/°C
- Rugged
- Set consists of 4 resistance standards: 25 Ω, 125 Ω, 5 kΩ, 100 kΩ values as recommended by NI PXIe-408x calibration procedure
- 3/4" spacing for direct connection to the NI PXIe-4082
- Low inductance < 0.08 µH
- Accredited Calibration
- In addition to the standard values, any custom value is available. Please contact the IET sales department, for more information
Find out more about our different Resistance Standards
